Frac Fluid Heaters

Hellian Energy Services, with its fleet of modern and reliable equipment, offers a variety of solutions to fluid heating projects. Whether the need is tank heating, pond heating or hot oiling, Hellian has a complete range of heaters. This equipment is described in more detail below:

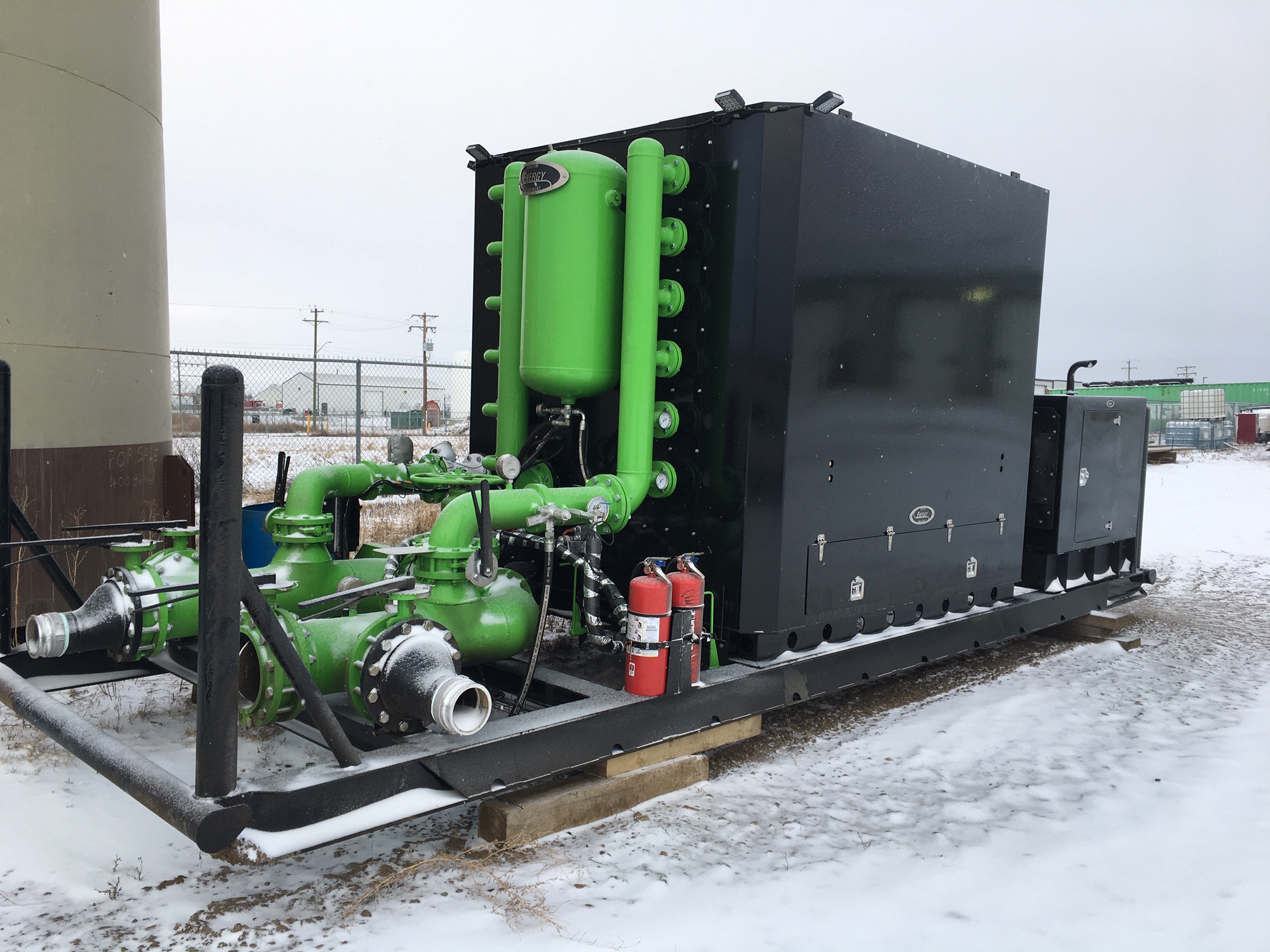

• Propane or natural gas high efficiency burners (92% efficiency on NG / 90.5% efficiency on LPG)
• Custom Coil design allows for high volume slipstream capabilities(10.0+M³/Min @ 14C temp rise, 7.0 M³/min @18.5C temp rise, 5.0 M³/min @ 26C temp rise, 3.0 M³/min @ 43C temp rise)

6” manifold with 8” bypass manifold and globe
valve

• Redundant high temp and hi/low volume safety switches eliminating single point failures
• Compact foot print – 8’ x 24’ skid
• Coil design allows for heating of fresh water, CKL,or flow back fluids
• Reliable, field tested control system

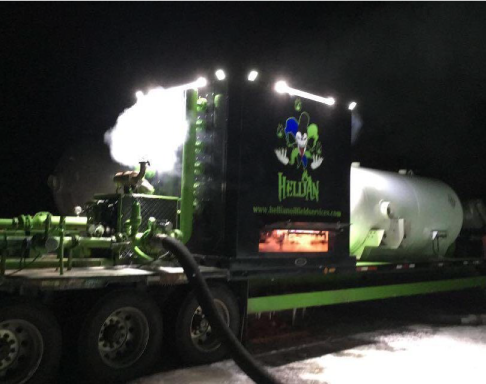

• Propane or natural gas high efficiency burners (92% efficiency on NG / 90.5% efficiency on LPG)
• Custom Coil design allows high volume slipstream capabilities through 6” connections (7.0 M³/min @18.5C temp rise, 5.0 M³/min @ 26C temp rise, 3.0 M³/min @ 43C temp rise)
• Additionally equipped with a 4” x 3” x 14” pump, driven by Cummins 4 cylinder Diesel. Equipped with four - 4" suction and four - 4" discharge connections
• Utilizing the self-contained pump, the unit is capable of heating 2.7M³/Min @ 45C temp rise
• Coil design allows for heating of fresh water, CKL, or flow back fluids
• Trailer mounted 10,800 L propane tank
• Redundant high temp and hi/low volume safety switches eliminating single point failures
• Reliable, field tested control system

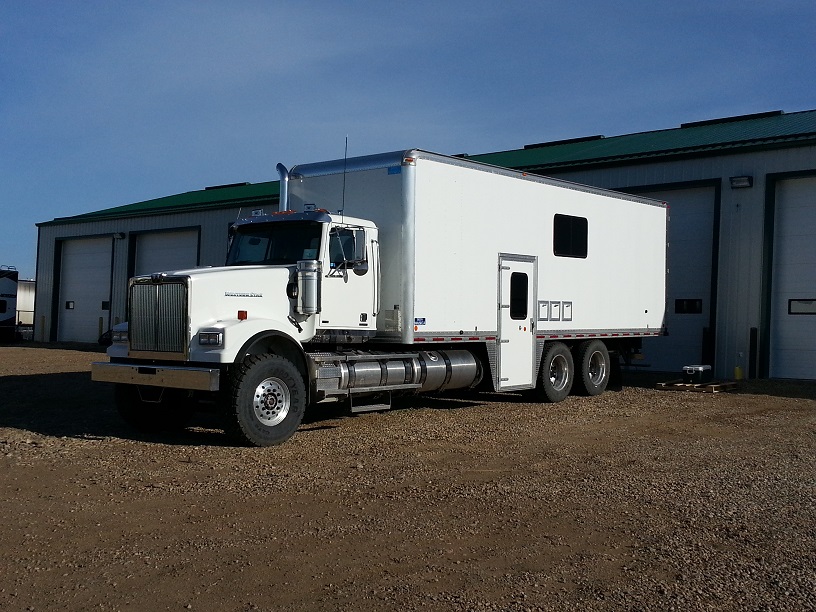

• Industry Leading with 95% Heating Efficiency
• Convertible between Diesel, Propane or Natural Gas
• Patented Exhaust Heat Collection System
• Up to 31° C Temperature Change at 750 GPM
• Long Life Centrifugal Suction and Discharge Pumps
• High Temp and Hi/Low Volume Safety Switches
• Environmentally Friendly with Low CO2 Emissions
• Variable Output Control for "On the Go" Applications
• Two 4" suctions and One 4" High Pressure Discharge

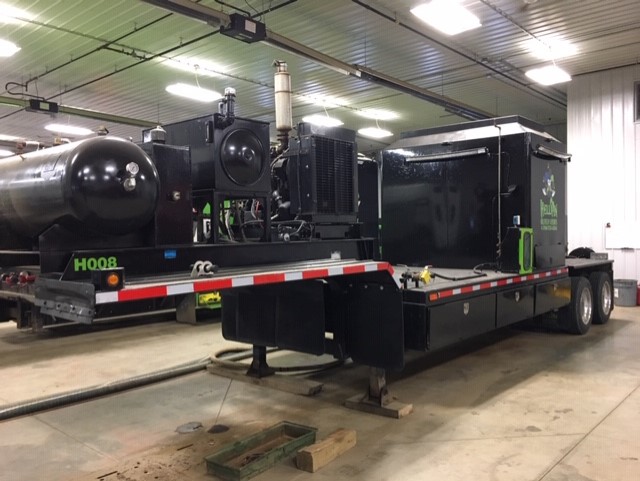

• 20 MM BTU Fluid Heater
• Propane Or Natural Gas
• Two 3" Suction and Two 3" Discharge
• 900 LPM Flow Rate with 40 C Temperature Rise
